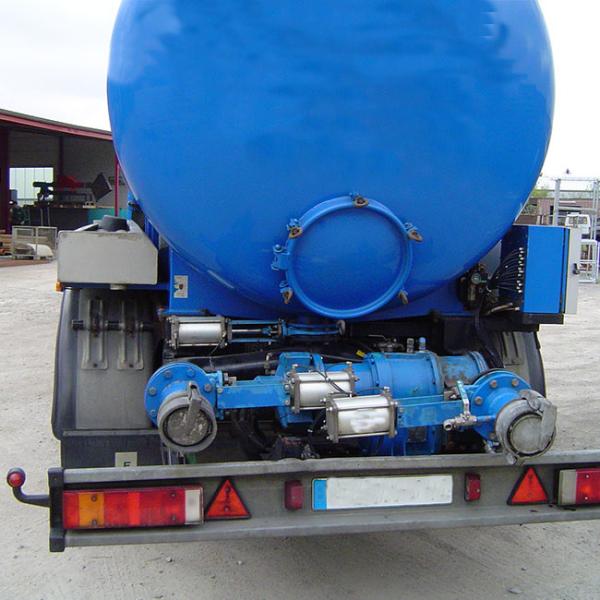

Highly Viscous, Resistant to Solids, Self-Priming, Road Tanker Pump
A waste management company was looking for a powerful pump for a
road tanker. As the road tanker had to transport different media,
the waste management company was looking for a pump, which could
handle solvants, oil residues, sludge and different chemicals.
Furthermore, the pump had to have a small footprint, to use as
little space as possible on the road tanker.
The waste management company decided in favor of a Accuvon rotary
lobe pump AP 120. The compact pump is driven via the hydraulic
motor. As the rotary lobe pump is operated in reverse operation,
the road tanker is filled and discharged with the same pipe
connection system.
The Accuvon rotary lobe pump is built very easy to maintain. The
rotors can be exchanged within a few minutes via the quick release
cover. The waste management company has big advantages here.
Corresponding to the medium that has to be pumped, the company
changes the lobes in the pump. This way, the operator has always
the ideal lobes for each medium and avoids needless abrasion. The
customer is very satisfied with his Accuvon rotary lobe pump.
Application data of Accuvon rotor pump AP 120:
| Medium | oil residues, chemicals, dissolvants, sludge |
| Flow Rate | 20 – 70 m³/h |
| Pump Speed | approx. 200 – 550 rpm |
| Temperature | 5 – 30 °C |
| Pressure | 2 bar |
| Solids Content | 4 % |
| Viscosity | different |
| pH level: | Neutral |
Technical data of Accuvon rotor pump AP 120:
| Casing | Duplex- stainless steel 2205 |
| Casing protection plate | Duplex- stainless steel 2205 |
| Static O-rings | FFKM |
| Shaft seal | mechanical seal SISIC/SISIC |
| Rotors | NBR Rubber, stainless steel 2205, PTFE, changing |
| Drive | Hydraulic drive |
Advantages of this Accuvon lobe pumps AP 120
· Selfpriming
· Small footprint
· Reversible
· Variable speeds
· Shorttime able to run dry
· Conveyance of highly viscous media
· Resistant to solids
· Changing the rotors in a few minutes
FAQ:
| How to order from us? |
| Contact with us and tell your requirement , all components of pump
are accepted customized for you |
| Which shipping terms are available? |
| By sea, air, Express |
| How to operate your pump properly? |
| We have the complete English manual, training file and vedios to
guide how to install the pump, how to maintain pump. |
| What is your Warranty? |
| We guarantees that the pumps supplied are of high quality and
reliability. Warranty is 18 months from the date of manufacturing.
If any quality problem, we will send you the parts without cost in
3 working days. |
Features of Accuvon Rotary Lobe Pumps:
1.Self-priming, Valve-less, Positive Displacement Pump
2. Easy Maintenance through Front Cover
3. Controllable Flow, Ratio up to 1 : 5
4. Capacity of up to 3200 m³/h
5.Pressures of up to 25 bar
6. Dry-running Capability
7.Reversibility, same pump output for both directions
8. Gentle, Low-Pulsation Pumping
9.For Viscous, Solid, Abrasive or Shea-sensitive Mediums
10. Low Parts Replacement Costs
Components of a Accuvon Rotary Lobe Pump
1 Timing gear
2 Quench and control chamber
3 Casing in block design
4 Unwetted shaft
5 Axial and radial casing protection
6 Shaft seal
7 Rotors
8 Quick-release cover
