Crude Oil / Oil Fields / Viscous Or Abrasive Media / Gas-Liquid
Mixture / Rotor Pump

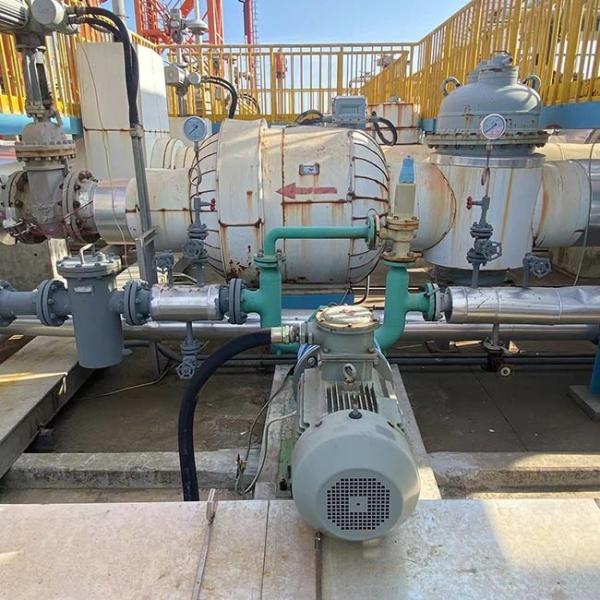

Oil Fields around the world depend on Accuvon Rotary Lobe Pumps for
transfer of Crude Oil (Viscosity 200 – 2,000 cP). Extreme climates
with wide temperature ranges add to the difficulty of these
applications and demand suited material choices.
Application data:
| Pump | AF 150 |
| Medium | Crude Oil |
| Flow Rate | 180 m³/h |
| Pump Speed | 430 rpm |
| Solids | / |
| Environment | EX DIIBT4 |
| pH value | Neutral |
| Temperature | approx. 60° C |
| Pressure | 5 bar |
| Viscosity | 200 – 2,000 cP |
Technical data::
| Casing | cast iron GG25 |
| Casing protection plate | 304 Stainless steel |
| Static O-rings | FKM |
| Shaft seal | SISIC |
| O-Rings (dynamic) | FKM |
| Rotors | tri-lobe screw profile, FKM |
| Drive | 55 Kw |
Advantages of this Accuvon AF 150
· EX (explosion proof)
· Self priming
· gas-liquid mixture
· Low life-cycle costs
· good wear resistance
· viscous or abrasive media
Production processes in the oil industry depend heavily on robust
and durable pumping systems. The wide range of pump sizes, the
option loaded modular design and the peripheral equipment enable
Accuvon to supply a suitable Rotary Lobe Pump for your oil
application. Accuvon Rotary Lobe Pumps are manufactured to the
Explosion Proof Standard.
The Accuvon MIP-Design is a unique advantage to minimize downtime
and maintenance: MIP (Maintenance In Place) allows the quick and
convenient replacement of all fluid wetted parts without removal of
pipes, drives or other components of the pump unit by your own
staff. Quick - Uncomplicated - Inexpensive.
Petrochemical fluids often include abrasive and aggressive
characteristics. Wide viscosity ranges demand customized solutions
for pumping systems: Accuvon offers rotor materials with different
coatings (Elastomer, PTFE or Urethane) or solid stainless steel
rotors. Casing protection plates are supplied with different steel,
plastic or ceramic quali[1]ties. For operational safety the Accuvon
relief valve can be added as a mechanical over pressure protection
device.
Variety of Rotor Designs Rotor geometry and materials are
customized for each individual application Rubber elastomers,
Urethane or stainless steel lobe designs are available.
Similar application of sewage treatment:
Accuvon provides many applications on-board ships and in other
areas of the marine industries - from handling of both fresh and
seawaters to fuels of all kinds, oil or oil sludge, bilge or other
water-oil mixtures, fish or fish waste, sewage or other fluids with
or without solids, of low or high viscosities.
Sewage | Ballast Water | Bilge / Loading | Oil Sludge | Fuel /
Crude Oil | Oil-Water Separation | Fish / Kitchen Waste | Mud |
Emulsions | Oilfield Chemicals | Marine Diesel Oil | as Skimmer
Pump
Features of Accuvon Rotary Lobe Pumps:
1.Self-priming, Valve-less, Positive Displacement Pump
2. Easy Maintenance through Front Cover
3. Controllable Flow, Ratio up to 1 : 5
4. Capacity of up to 3200 m³/h
5.Pressures of up to 25 bar
6. Dry-running Capability
7.Reversibility, same pump output for both directions
8. Gentle, Low-Pulsation Pumping
9.For Viscous, Solid, Abrasive or Shea-sensitive Mediums
10. Low Parts Replacement Costs
Components of a Accuvon Rotary Lobe Pump
1 Timing gear
2 Quench and control chamber
3 Casing in block design
4 Unwetted shaft
5 Axial and radial casing protection
6 Shaft seal
7 Rotors
8 Quick-release cover
