Strong Suction Easy Maintenance Sanitary Lobe Pump For Food
Industry
Product Description:
Sanitary grade lobe pump is one of the products specially developed
by ACCUVON pumps company to meet the customers in the production
process of high hygiene requirements. Working chamber has sanitary
rotor, rotor locking nut O - ring, pump body without sanitary dead
angle and Higher hygienic grade. Support CIP, SIP. The surface
roughness is 0.2--0.6mm, in accordance with 3A, FDA standards. Can
be widely used food, medicine and other materials with high
requirements for hygiene level.
Specifications:
| Description | Rotary Lobe Pumps |
| Rotor | Duplex stainless steel |
| Seal | Double mechanical seal |
| Axial and radial casing protection | High-strength steel , resistant to wear |
| Drive | Variable speed gear motor |
| Material of pump | Full of stainless steel |
| Pressure | 0 - 1.4 Mpa |
| Flow | 1.6 - 66 m³/ h |
| Power | 3 - 22 / KW |
| Speed | 10 - 600 rpm |
| Work efficiency | Up to 85% |
| Medium | High-corrosive / high-viscous / sanitary medium |
| Self - priming | Up to 9.5m vertical / 30m horizontal |
| Custom printing | Acceptable |
Parameter of AP 100
| Drive | Weight | Dimensions |
| KW | KG | L / mm | H / mm |
| 3 | 204 | 1268 | 394 |
| 4 | 216 | 1288 | 419 |
| 5.5 | 237 | 1368 | 454 |
| 7.5 | 250 | 1408 | 454 |
| 11 | 305 | 1498 | 509 |
| 15 | 368 | 1498 | 509 |
Design 1 | Short, straight pipe connectors with connection flange
and gasket, in mm / inches approx.
| AP 100 | DN 80 / mm | DN 100 / mm | DN 125 / mm | DN 150 / mm | DN 200 / mm |
| DIN 2633 | 146/550 | 146/550 | 176/610 | 181/620 | 251/760 |
| ANSI 150 | 161/580 | 170/598 | 210/678 | 236/730 | |
Working principle:
ACCUVON lobe pumps basically consist of two lobe rotors, which
rotate synchronously driven by a pair of synchronous gears in the
gearbox. The rotors are driven by the main shaft and sub-shaft to
rotate in a synchronous reverse direction, which changes the pump
capacity, builds up high vacuum and discharge pressure, thus an
efficient pumping is formed. Gap is kept between the rotors and
between the pump casing, no friction, long life, no damage, no
physical and chemical reaction to the pumped products.
Advantages
1. Gap is kept between the rotors and rotors & pump body, no
friction, long using-life.
2. Simple assembling and disassembling, easy to maintenance and
clean, less easily-damaged parts.
3. High efficiency and energy-saving, low failure, reliable sealing
and low noise.
4. In the same type pump, different type rotor can be interchanged.
5. Capable to pump the viscous medium from 1cp to 2million cps.
6. Capable of pumping mixture of gas, fluid and solid medium.
7. Equipped with inverter, the flow can be adjusted as requirement
of end-user.
8. Flange, screw or clamp connection can be selected as required.
9. Higher hygienic grade, support CIP, SIP. The surface roughness
is 0.2--0.8um, got 3A, FDA certification.
10. Hygienic safety valve is built-in structure.
11. A control unit combined with a frequency inverter regulates the
speed of the pump so the liquid sugar is conveyed in doses from a
storage tank into the mixing container.
12.The pump is able to convey viscous product, is easy to service
and is resistant to pressure.

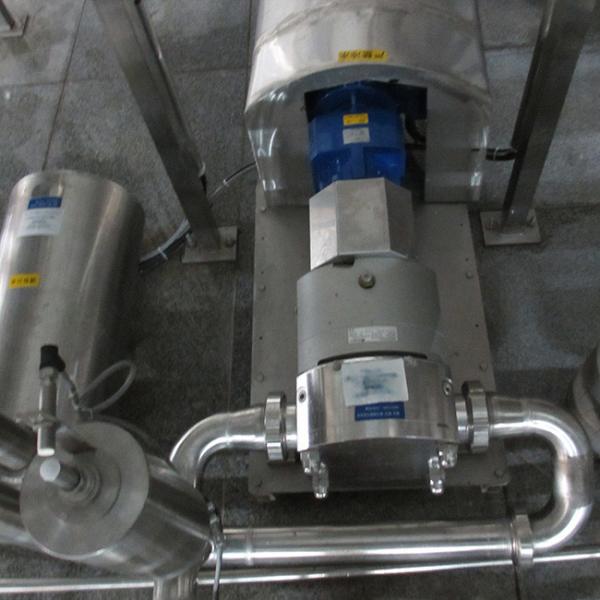

Quality inspection photos
