Fast And Reliable Lobe Pump For Conveying In Paper And Pulp
Processing
Application in Paper and pulp processing
With Accuvon rotary lobe pumps, you can convey media with special
requirements such as kaolin slurry or ceramic slurry quickly and
reliably. Thanks to a single-sided bearing and quick-release cover
enables quick, direct accessing of the pump chamber. the Accuvon
enables you to achieve particularly long running times with low
maintenance. To save time when cleaning and maintenance work is
required, you can remove the front of the pump chamber in a few
easy steps. This makes the entire pumping area easily accessible.
Thus you can shorten your service times, which is a great
advantage, especially with abrasive and highly viscous products.
Specifications:
| ACCUVON | rate of flow
l/rev | flow
(m³/h) | pressure
(Mpa) | speed
rpm | Flange diameter
DN mm | power
Kw |
| AC25 | 0.196 | 0.1-7 | 0-1.2 | 10-600 | DN25 | 0.75-5.5 |
| AC50 | 0.392 | 0.2-14 | 0-1.0 | 10-600 | DN50 | 1.1-5.5 |
| AC75 | 0.588 | 0.3-21 | 0-0.6 | 10-600 | DN50 | 1.1-5.5 |
| AP80 | 1.125 | 0.6-400 | 0-1.8 | 10-600 | DN80 | 3-22 |
| AP100 | 1.875 | 1.1-66 | 0-1.4 | 10-600 | DN100 | 3-22 |
| AP120 | 2.864 | 1.7-103 | 0-1.0 | 10-600 | DN100 | 3-22 |
| AP140 | 3.714 | 2.2-133 | 0-0.6 | 10-600 | DN125 | 7.5-22 |
| AF125 | 4.566 | 2.7-164 | 0-1.6 | 10-600 | DN125 | 11-55 |
| AF150 | 6.828 | 4-246 | 0-1.2 | 10-600 | DN150 | 11-55 |
| AF200 | 9.456 | 5.5-340 | 0-0.8 | 10-600 | DN200 | 11-55 |
| AX250 | 12.5 | 7.5-487 | 0-2.5 | 10-650 | DN250 | 22-315 |
| AX300 | 25 | 15-975 | 0-1.0 | 10-650 | DN300 | 30-315 |
| AX350 | 37.5 | 22.5-1463 | 0-0.6 | 10-650 | DN350 | 45-315 |
| AX450 | 50 | 30-1950 | 0-0.4 | 10-650 | DN450 | 55-315 |
| AX350D | 75 | 45-2926 | 0-0.6 | 10-650 | DN350*2 | 90-450 |
| AX450D | 100 | 60-3900 | 0-0.4 | 10-650 | DN450*2 | 110-600 |
Note: Above flange is regular for each model, besides we also offer
various flange connection according to your requirements
1. Tested medium in the table: water.
2. Speed, flow rate, electrical power and pressure will be
according to different liquid properties.
3. Port size can be changed as needed.
4. ACCUVON reserves the right to change specifications without
prior notification.
Advantage
1. Rotor pump is suitable for transporting high viscosity, density
and any medium containing particle.
2. The rotational speed is low, generally keep already existing
quality not changing , any physics and chemical property won't be
changed.
3. Stainless Steel Lobe Pump can be also called colloidal pump. All
liquid flowing parts are made of stainless steel. It can transmit
high viscosity, thickness and with particle medium.
4. High pressure of out let makes sure the long distance and high
resistance transportation with stable capacity used widely in food
,chemical, industrial areas .
5. Suitable temperature: -30 °C to 200 °C.
Structure features
The pump cavity design is so simple. All models of pumps retain
simple design styles. The fast -opening pump cover is opened to
provide guarantee for user maintenance personnel without
disassembling the pipeline. The driver can guarantee online repair.
Greatly reduced the stop time. Before and after, the upper and
lower wear -resistant internal lining design, comprehensively
ensure the non -wear of the pump shell and ensure long -term
durability. Such a simple maintenance characteristics reduce the
operating cost of the entire life cycle of the equipment.

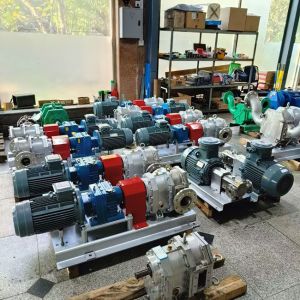

Quality inspection photos
