Ease Of Maintenance And Solid Resistant Convey Food Waste Lobe Pump

Accuvon lobe pump

In the food industry, managing waste is an important step to ensuring stable production rates. Pumps play a huge role in managing multiple types of waste, making it essential to choose the best pumps for pumping food and animal waste and byproducts. For food waste, a pump is needed that can reliably pump tough solids and not be prone to clogging which could only lead to downtime and loss of production. Pumping solids is demanding due to the high potential for clogging.

For this situation, Accuvon lobe pump can solve perfectly thanks to they are large and direct inlet opening gives highly viscous media and stiff, clumpy elements direct access to the displacement chamber. The medium flows a short distance through the pump chamber, thus ensuring gentle pumping. With fibrous media or media with a tendency to clump, clogging or coiling is nearly impossible.

Specifications:

Note: Above flange is regular for each model, besides we also offer various flange connection according to your requirements

Design and Materials:

• Pump casing: one-piece Block casing with protective liner plates at both faces.
• Bearings: one side double bearings, oil bath in block-casing, lateral drain plug
• Rotors: entirely NBR - coated, core not product wetted
• Rotor-form: dual lobe rotors, entirely elastomer coated
• Shafts: not wetted by pumped fluid, but oil lubricated Shaft
• Sealing: maintenance free single acting mechanical seals with common oil quench, seal faces SISIC / SISIC; Seals easily replaceable through pump casing.
• Seal monitoring: oil-filled intermediate chamber, integrated in the pump casing, with lateral drain plug, as Quench, for seal monitoring and for lubricating the shaft-rotor-connection, without external fluid reservoir, without pressurization.
• Pump: 2-component-PUR-coat
• Drive: Manufacturers standard
• Maintenance: MIP™, Maintenance in Place, through quick release cover opening, with 4 rings nuts and O-ring-seal, without disassembling the pump and/or pipes.

Structure features

The pump cavity design is so simple. All models of pumps retain simple design styles. The fast -opening pump cover is opened to provide guarantee for user maintenance personnel without disassembling the pipeline. The driver can guarantee online repair. Greatly reduced the stop time. Before and after, the upper and lower wear -resistant internal lining design, comprehensively ensure the non -wear of the pump shell and ensure long -term durability. Such a simple maintenance characteristics reduce the operating cost of the entire life cycle of the equipment.

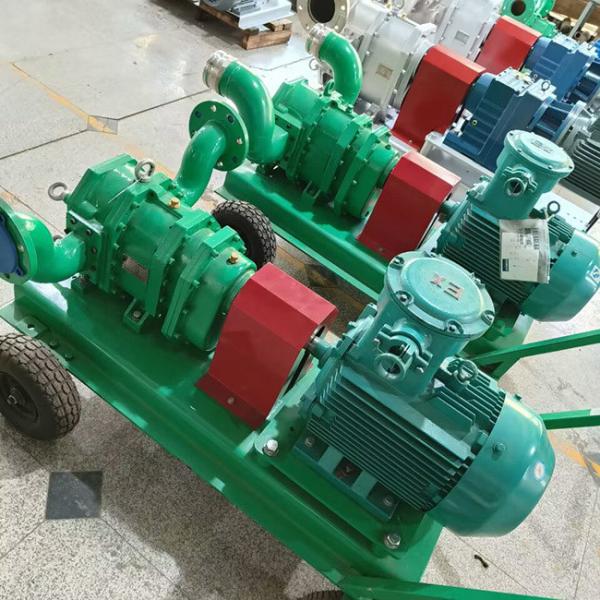

Quality inspection photos

Accuvon (Guangzhou) Pumps Co., Ltd. is a Sino-German joint venture established in 2008. It specializes in design, development, manufacturing, sales, engineering applications and technical services for rotor pumps. In accordance with the German DN industrial standards and technical requirements , licensed manufacturing and sales of ACCUVON brand rotary lobe pump in China.

In the past fifteen years, ACCUVON has focused on the field of rotary lobe pumps, and is committed to providing customers with professional technical support and perfect solutions. More than a thousand projects have been implemented, with partners from all walks of life in China.Besides, some products have been exported to South Asia and the Middle East. With high-quality , advanced technology and service , it has won the trust and first choice of the industry. Up to now, the company has applied for 50+ patents, an obtained quality management system certificate S09001, environmental management system certificate S014001, occupational health and safety management system certificate OHSAS18001, high-tech enterprise certificate, high-tech product certificate (5 items) etc.

The technologies of ACCUVON pumps are mainly used in petrochemical industry, sewage treatment, railway vacuum discharge system, biogas energy, food waste, ship ocean, pulp and paper, light industry etc.
