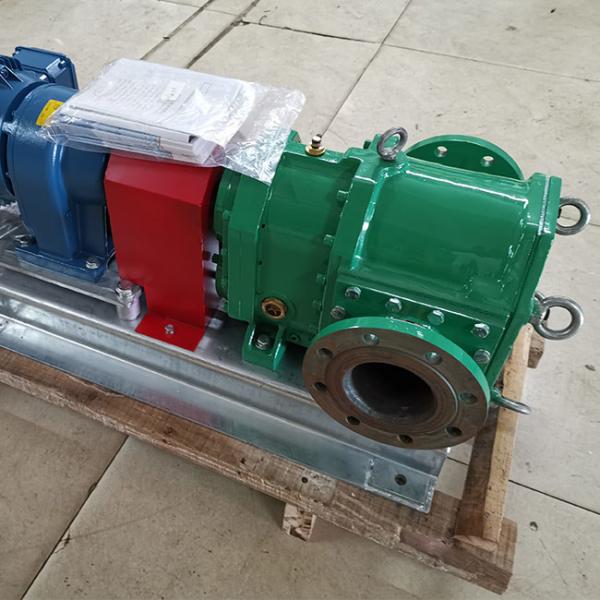

Elastomer-Coated Rotary Lobe Pumps / Stationary , Mobile Or
Submerged Versions
Accuvon rotary lobe pumps have made our company well known
worldwide. Market leader for elastomer-coated rotary lobe pumps
,The solids handling pumps are powerful, reliable and efficient.
Accuvon pumps convey dirty, sludgy and abrasive media without
problems.
Accuvon products are designed for trouble free, continuous
operation, as we want you to be able to work as effectively as
possible. This is the reason why we only offer powerful and durable
plants with unbeatable ease of maintenance features.
For pump system installations, the structural conditions plant site
and required accessories need to be considered. Accuvon offers
complete solutions. In addition to the rotary lobe pump itself, we
also manufacture the pump skid components.
The mounting position of the pump / drive combination are selected
according to plant requirements. Our rotary lobe pumps can be
either driven by an electric motor, a combustion motor, a hydraulic
motor, or a PTO shaft of a tractor. The rotary lobe pumps can be
used as stationary, mobile or submerged versions due to the
flexibility and compact design of the pumps.
Accuvon builds each mobile pump in line with customer's
requirements. The pumps can be installed on a three-point hitch
frame, on a trailer, on a hand cart or on a tanker truck.
Accuvon supplies special pump systems or mobile unit "turn-key".
The design, metal construction and electrical engineering
departments meet any challenge.
Accuvon vat filling stations are used in many different versions.
They are mostly driven by the PTO shaft of a tractor. If media
containing solids are pumped, a macerator is recommended
Performance data
| accuvon | rate of flow
l/rev | flow
(m³/h) | pressure
(Mpa) | speed
rpm | Flange diameter
DN mm | power
Kw |
| AC25 | 0.196 | 0.1-7 | 0-1.2 | 10-600 | DN25 | 0.75-5.5 |
| AC50 | 0.392 | 0.2-14 | 0-1.0 | 10-600 | DN50 | 1.1-5.5 |
| AC75 | 0.588 | 0.3-21 | 0-0.6 | 10-600 | DN50 | 1.1-5.5 |
| AP80 | 1.125 | 0.6-400 | 0-1.8 | 10-600 | DN80 | 3-22 |
| AP100 | 1.875 | 1.1-66 | 0-1.4 | 10-600 | DN100 | 3-22 |
| AP120 | 2.864 | 1.7-103 | 0-1.0 | 10-600 | DN100 | 3-22 |
| AP140 | 3.714 | 2.2-133 | 0-0.6 | 10-600 | DN125 | 7.5-22 |
| AF125 | 4.566 | 2.7-164 | 0-1.6 | 10-600 | DN125 | 11-55 |
| AF150 | 6.828 | 4-246 | 0-1.2 | 10-600 | DN150 | 11-55 |
| AF200 | 9.456 | 5.5-340 | 0-0.8 | 10-600 | DN200 | 11-55 |
| AX250 | 12.5 | 7.5-487 | 0-2.5 | 10-650 | DN250 | 22-315 |
| AX300 | 25 | 15-975 | 0-1.0 | 10-650 | DN300 | 30-315 |
| AX350 | 37.5 | 22.5-1463 | 0-0.6 | 10-650 | DN350 | 45-315 |
| AX450 | 50 | 30-1950 | 0-0.4 | 10-650 | DN450 | 55-315 |
| AX350D | 75 | 45-2926 | 0-0.6 | 10-650 | DN350*2 | 90-450 |
| AX450D | 100 | 60-3900 | 0-0.4 | 10-650 | DN450*2 | 110-600 |
Features of Accuvon Rotary Lobe Pumps:
1.Self-priming, Valve-less, Positive Displacement Pump
2. Easy Maintenance through Front Cover
3. Controllable Flow, Ratio up to 1 : 5
4. Capacity of up to 3200 m³/h
5.Pressures of up to 25 bar
6. Dry-running Capability
7.Reversibility, same pump output for both directions
8. Gentle, Low-Pulsation Pumping
9.For Viscous, Solid, Abrasive or Shea-sensitive Mediums
10. Low Parts Replacement Costs
Components of a Accuvon Rotary Lobe Pump
1 Timing gear
2 Quench and control chamber
3 Casing in block design
4 Unwetted shaft
5 Axial and radial casing protection
6 Shaft seal
7 Rotors
8 Quick-release cover
